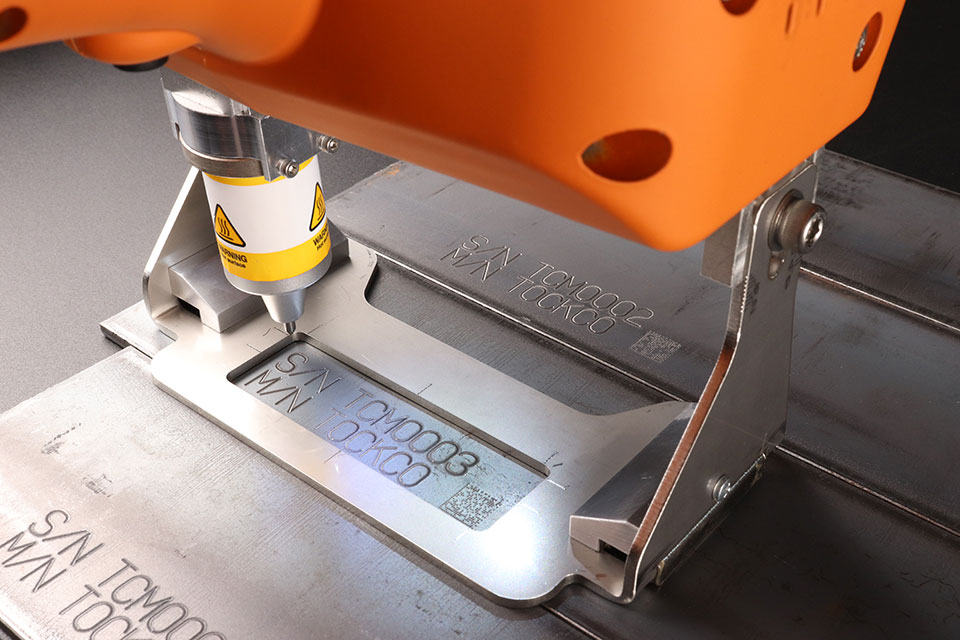

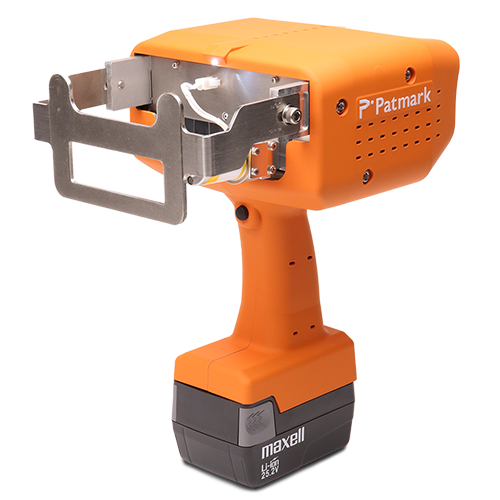

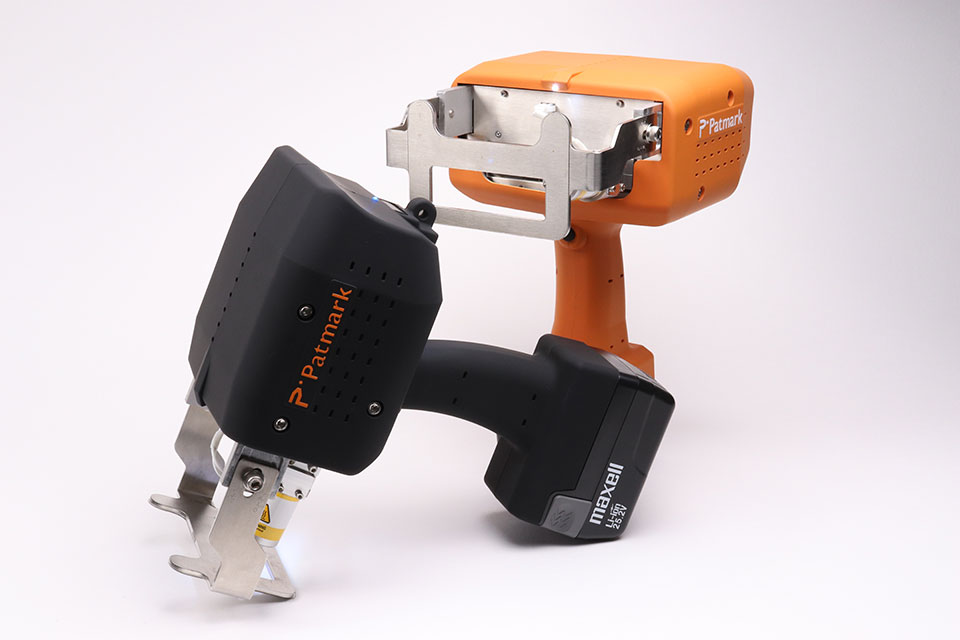

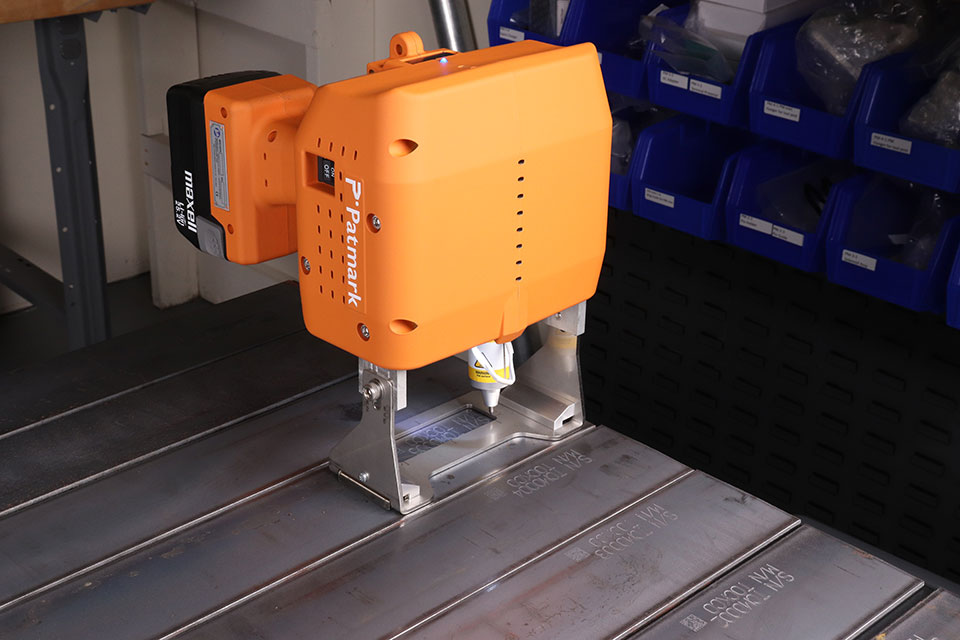

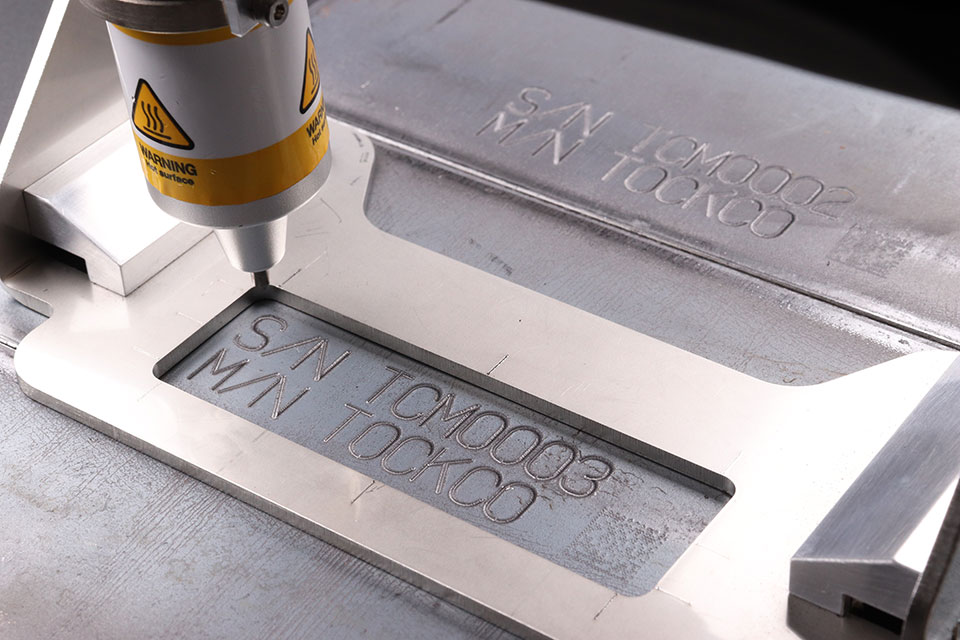

The Patmark 2080 is a portable, battery operated dot peen part marker. It can mark on everything from plastics to hardened metals up to 62 RC. With easy-to-use software compatible with Android and iOS you can get a clean and clear mark as small as 1mm, every time.

Specifications

Power Supply	AC Adaptor	AC100V ~ 240V 50/60Hz
	Battery	*25.2V 3.0Ah
	Battery Charger	Input 100~ 240V 50/60Hz
Weight	With AC Adaptor	3.0kg (6.6lbs)
Weight	With Battery	3.5kg (7.8lbs)

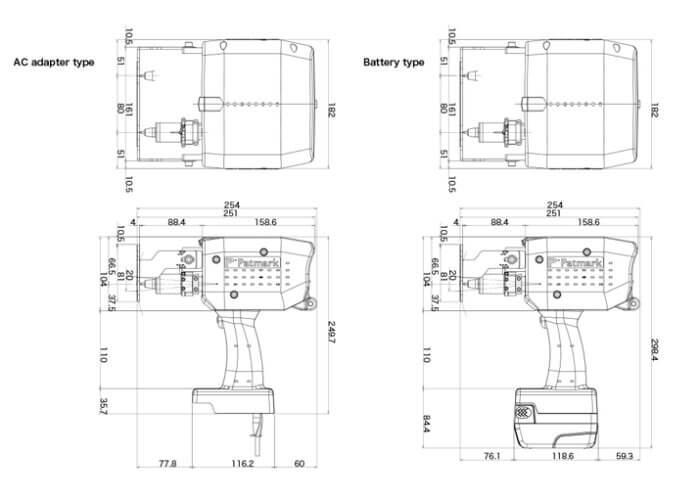

Dimensions		7.2″ x 10.0″x 11.7″
Marking area		20mm(0.8in) x 80mm(3.1in)
Software	App Based (iOS & Android)	Wi-Fi
Software	Windows Based Software	Wi-Fi or USB (included)
Type of markable workpieces		Metal (up to about HRC62), plastic, paper, and wood

*The lithium-ion battery is subject to change without notice at the discretion of the battery manufacturer.

Specifications of the App Based Software and the Windows Based Software

Types of text		Alphabet, numbers, and various symbols
Standard fonts		PM font, 5×7 font *Selectable on Windows software
Long text marking (marking over 15mm)		Equipped with an automatic classification function.
Multiple-line marking	App	One line only
Multiple-line marking	Windows Software	Multiple line setting possible up to 30 fields
Text height	App	Choose from S, M, and L *1 to 20mm, in 1 mm increments.
Text height	Windows Software	Choose from 1mm to 20mm, in 0.1 mm increments.
Marking force	App	Choose from weak, medium, and strong. *Value from 0 (low) and 9 (strong) can be specified in the default setting menu.
Marking force	Windows Software	Enter a value between 0 (low) and 9 (strong).
Font quality	App	Choose from low, medium, and high. *Value from 1 (low) and 9 (high) can be specified in the default setting menu.
Font quality	Windows Software	Enter a value between 1 (low) and 9 (high).
Logomarks	Windows Software	BMP and JPG data – browse and trace in Logo Editor
Logomarks	Windows Software	DXF data – auto covet *Only when connected to a PC.
2-D code	Windows Software	QR code (up to 80 alphanumeric characters and symbols)
2-D code	Windows Software	Data matrix (up to 80 alphanumeric characters and symbols)
Serial numbers	Windows Software	Incrementable from 1 to 9999.
Date marking	Windows Software	Year, month, day, hour, minute, second, Julian date, shift
Files		Storable 255 files into Patmark memory.
