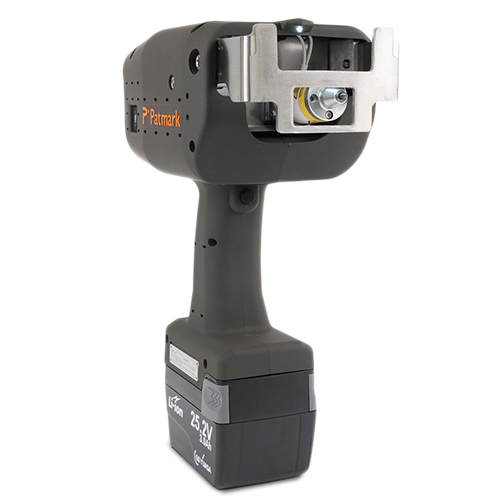

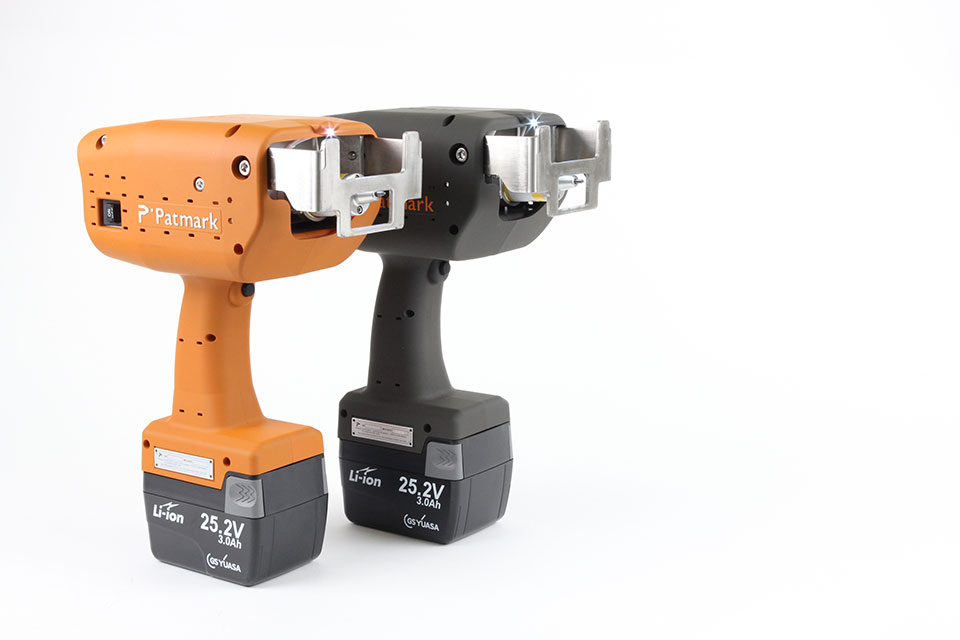

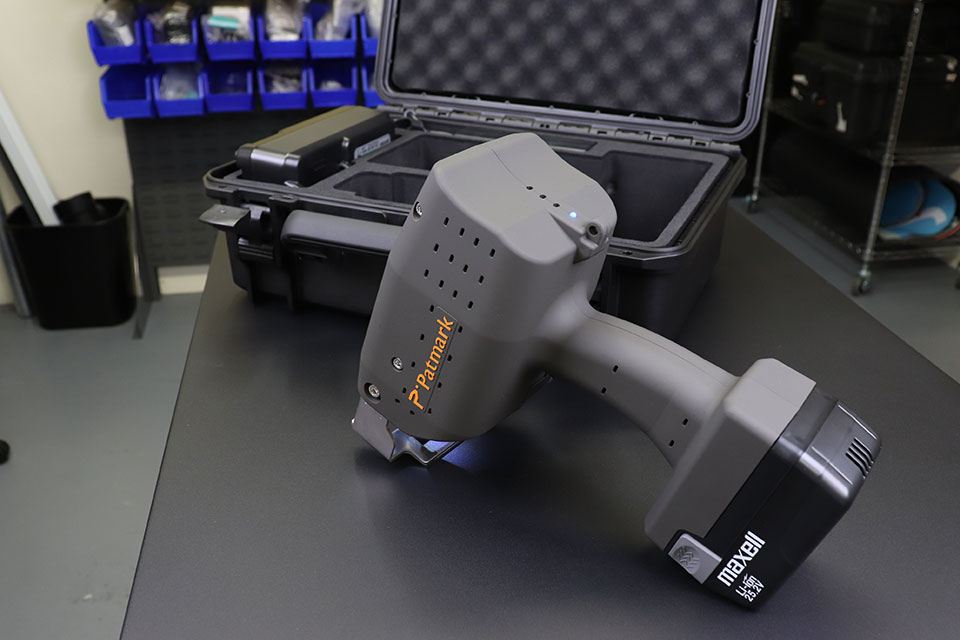

Patmark 1533

  • Battery Operated or A/C Adaptable
  • Marking area of 15mm x 33mm
  • Software compatible with iOS and Android, connects through WIFI
  • Guaranteed high quality mark as small at 1mm
  • Can be equipped with magnet marking head for easier marking

Description

Set up is easy, just download MarkinBOX app into your smartphone or tablet, then start communicating through your local WIFI Connection.

Specifications

Power supply AC adapter Input: AC100V-240V, 50/60Hz (120W)
Lithium-ion battery *25.2V, 3.0Ah
Battery charger Input: AC100V-240V, 50/60Hz
Weight When using AC adapter 1.4kg (3lbs)
When using
lithium-ion battery (*3A type)
2.3kg (5lbs)

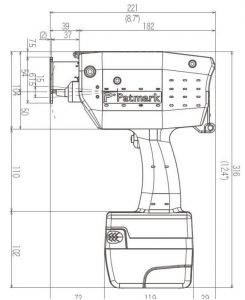

Dimensions When using AC adapter 89.2mm (3.5in) x 202.5mm(7.9in) x 256mm(10in)
When using
lithium-ion battery (*3A type)
89.2mm(3.5in) x 202.5mm(7.9in) x 322.5mm(12.7in)
Marking area 15mm(0.6in) x 15mm(0.6in)
Software Apps standard specification Wi-Fi
Windows software (option) Wi-Fi, USB

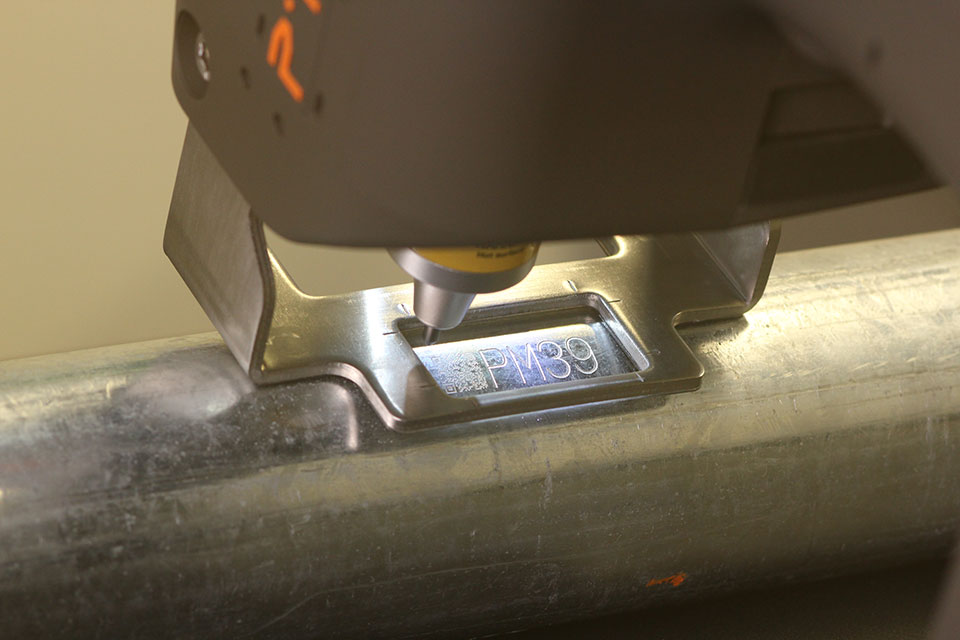

Type of markable workpieces Metal (up to about HRC62), plastic, paper, and wood
