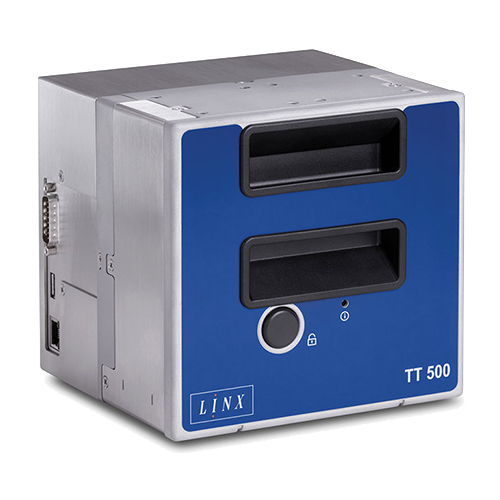

The Linx TT 500 is a simple printer designed for printing onto flexible materials including bags, pouches, labels and flow wrap, ideal when coding areas up to 1.26″ x 3.94″

Low cost of ownership, increased uptime, easy to use.

Benefits

Operates without compressed air reducing installation and operating costs while maintaining consistent print quality
Large range of ribbons to better meet your application and production line printing needs
Optimized ribbon usage with bi-directional stepper motors delivering more prints per ribbon

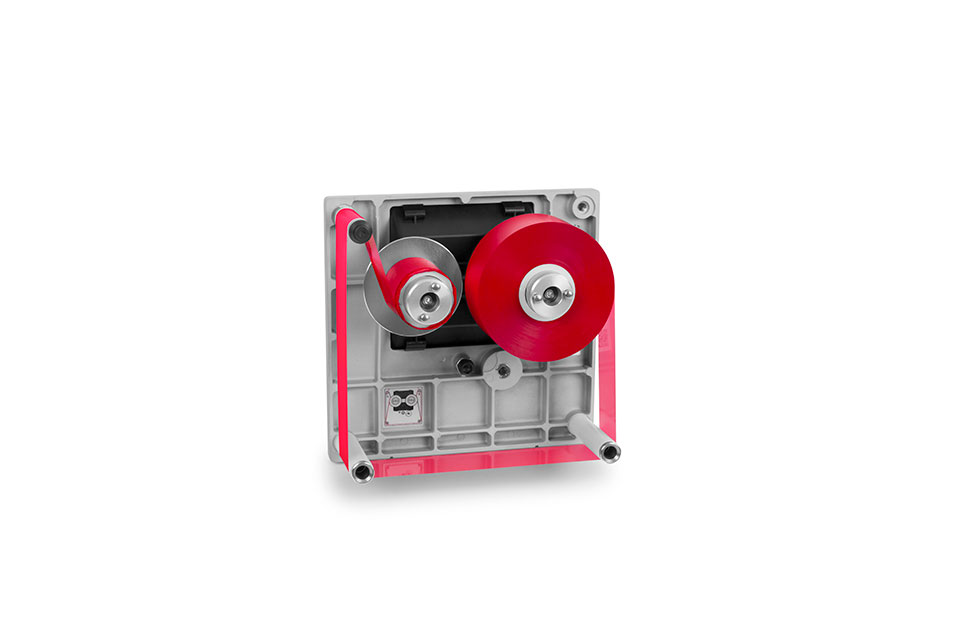

Lightweight, simple, push button ribbon cassette system for quick and easy ribbon changes
Optimal number of user maintainable parts that are easy to replace
Easy to set and maintain print quality with electronic pressure control
Simple cassette system minimizes errors during ribbon replacements

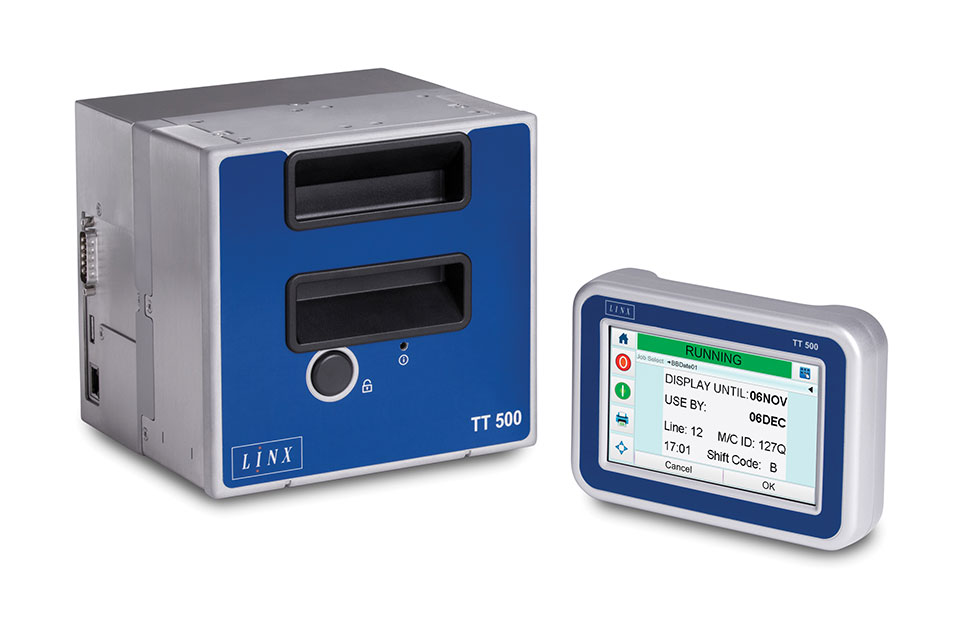

Easy to use color touch screen – fewer errors and hassle-free operation

Video

Technical Specifications

Printing Capabilities

Ribbon Widths	0.79″ to 1.30″
Print Area – Intermittent Motion Mode	Up to 1.26″(W) x 1.86″(L)
Print Area – Continuous Motion Mode	Up to 1.26″(W) x 3.94″(L)
Maximum Throughput	150 Prints per minute
Maximum Ribbon Length	2,296.59 ft
Print Speed – Intermittent Motion Mode	1.97″/sec to 11.81″/sec
Print Speed – Continuous Motion Mode	1.57″/sec to 19.69″/sec
Ribbons	Range of types, colors, lengths and widths
