Flexible Part-Marking Solution

Flexible Part-Marking Solution

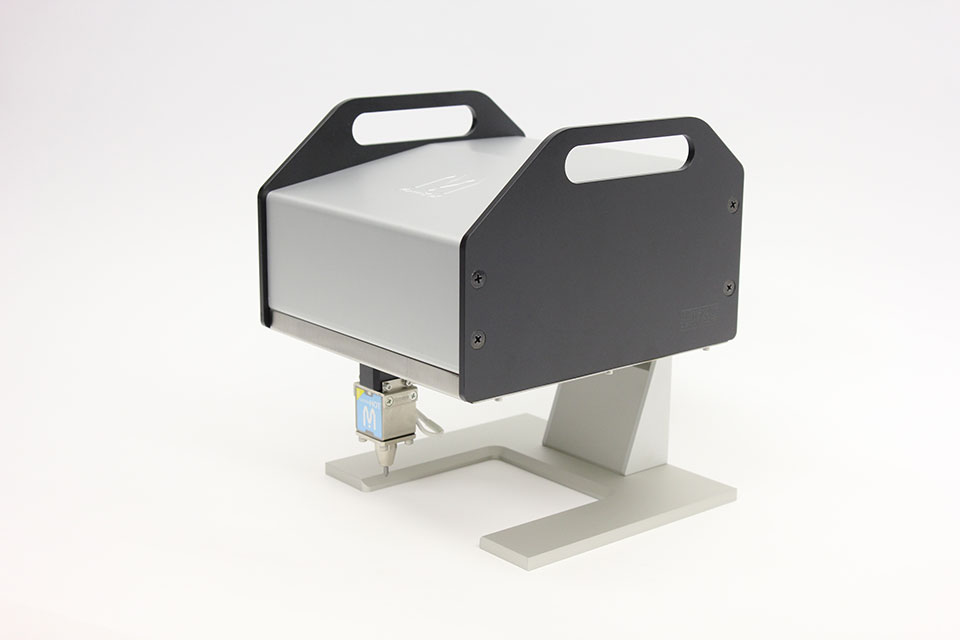

Boasting a nearly four-inch marking area, the MarkinBOX 1010 (MB1010) provides flexible part marking capabilities for a wide range of applications. Its compact and lightweight design allows marking at any angle with the marking head directly on any area that needs to be marked. The MB1010 is easy to use and is ergonomically engineered with easy-access controls and comfortable handles for stability.

Marking Area: 100mm (x axis) X 100mm (y axis)

Categories: Tags:

Specifications

Marking Area X axis 4″ (100mm)
Y axis 4″ (100mm)
Marking Area Dimensions 7.9″ (W) x 8.6″ (D) x 9″ (H)
(200mm x 217.5mm x 228mm)
Marking Area Weight 9.9lbs (4.5Kg)
Marking Area Cable 6′ (2m) cable
option : 16′ (5m) cable
Marking Stand Weight 15.4lbs (7Kg)
Marking Technology Solenoid Drive

Key Features

  • Windows Based Software
    • Sketchbook software is Windows based and runs off of Windows XP, 7 and 8
  • Flexible, Easy to Use
    • Deeper marks are possible with the “Big Solenoid” and 6mm pin option
  • Wide Choice of Connectivity
    • 6 possible ways to start marking via USB, Bluetooth (PC or Android), Digital I/O, PLC or Ethernet communications
  • Fully Electric
    • Runs safely and efficiently with maximum uptime and little maintenance
  • High Quality Mark
    • Guaranteed high quality marks as small as 1 mm
  • Flexible Integration
    • Can be hand held, mounted or integrated into production
  • Available in 3 variations

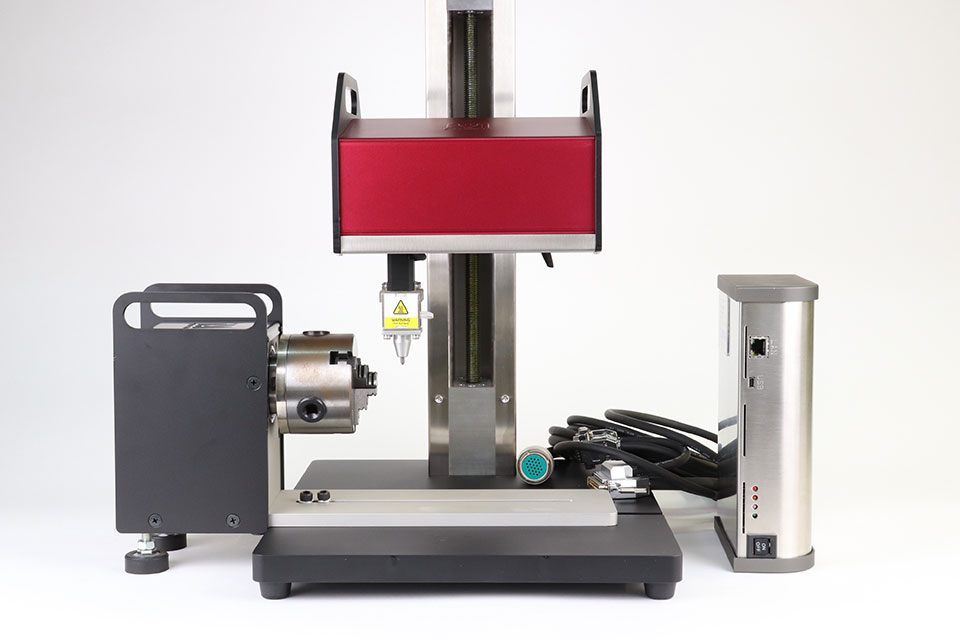

    • Stand type : Standard model

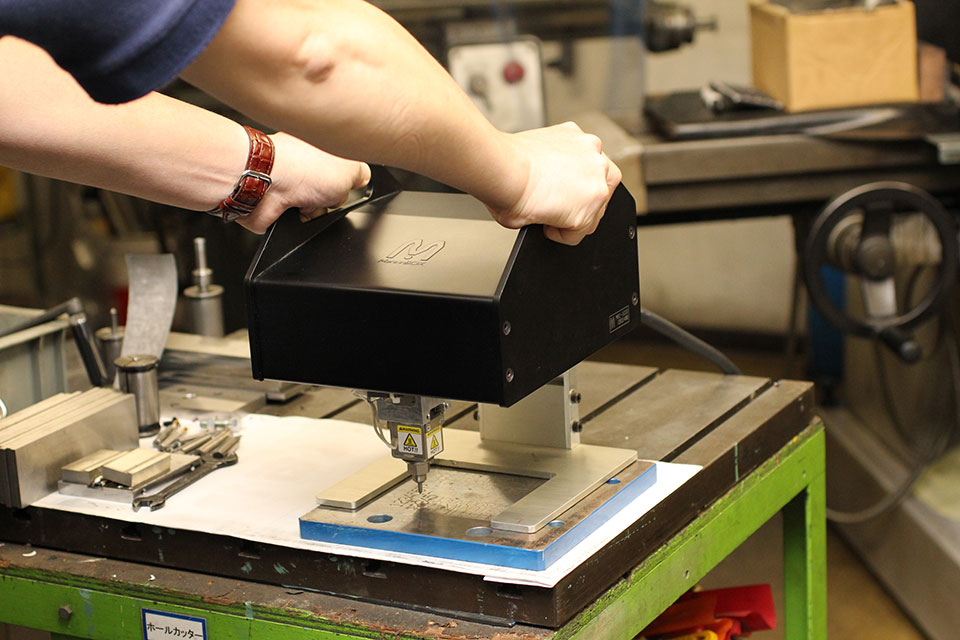

    • Handy type : Portable option
    • In-line type : Can be integrated into other machines

Brochures

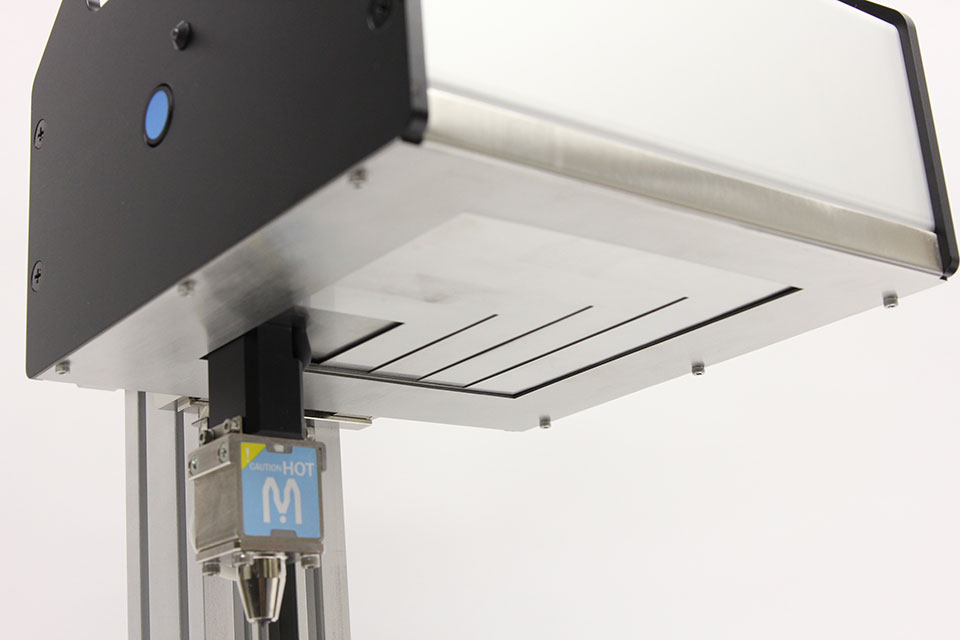

Marking Head – MB1010
