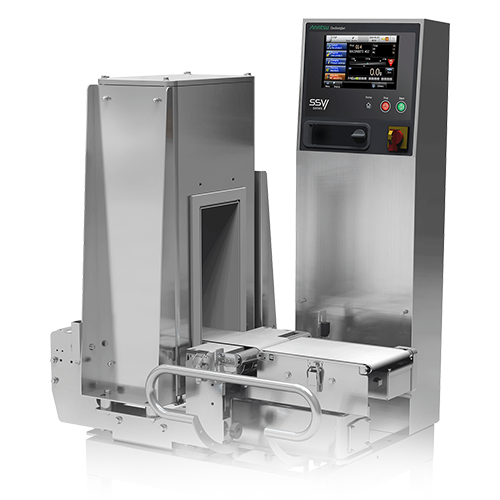

Economy Combination Detection System

With 10 types and various models within those types to choose from, the SSV-f series combination checkweigher and metal detector system will help you save time and money. This series is versatile in the types of products it can handle, including anything from large cartons to canned products.

Features

Standard Features

  • Space and Cost Savings
  • Simplified Support
  • Easy to Operate Touch Screen Control Panel
  • SMF (Smart Measurement Function)
  • Enhanced Stability
  • Available 0.001 g Measurement Capability (model dependent)
  • “Dual Wave” Metal Detection Technology
  • User Friendly Navigation Menu

Benefits

With the combined functions of the SSV-f series checkweighers and duw series metal detection systems you will save time and money, all while having simplified support at your fingertips. Anritsu is a single source technology, support and service provider that will make sure your combination metal detection and checkweighing system operates to its highest capability for its entire lifespan. The following is a list of the 10 types of versatile combination checkweigher and metal detection systems available from Anritsu:

  • KWS5203 type
    • Weighing range: 6 to 600 g
    • Maximum accuracy (3s): ±0.2 g
    • Maximum speed: 350 products/min
  • KWS5205 type
    • Weighing range: 6 to 600 g
    • Maximum accuracy (3s): ±0.2 g
    • Maximum speed: 350 products/min
  • KWS5206 type
    • Weighing range: 6 to 600 g
    • Maximum accuracy (3s): ±0.2 g
    • Maximum speed: 320 products/min
  • KWS5411 type
    • Weighing range: 12 to 3,000 g
    • Maximum accuracy (3s): ±0.2 g
    • Maximum speed: 320 products/min
  • KWS5412 type
    • Weighing range: 12 to 3,000 g
    • Maximum accuracy (3s): ±0.2 g
    • Maximum speed: 320 products/min
  • KWS5414 type
    • Weighing range: 12 to 3,000 g
    • Maximum accuracy (3s): ±0.2 g
    • Maximum speed: 220 products/min
  • KWS5416 type
    • Weighing range: 12 to 3,000 g
    • Maximum accuracy (3s): ±0.5 g
    • Maximum speed: 270 products/min
  • KWS5417 type
    • Weighing range: 12 to 3,000 g
    • Maximum accuracy (3s): ±0.5 g
    • Maximum speed: 220 products/min
  • KWS5422 type
    • Weighing range: 60 to 6,000 g
    • Maximum accuracy (3s): ±1.5 g
    • Maximum speed: 180 products/min
  • KWS5524 type
    • Weighing range: 60 to 6,000 g
    • Maximum accuracy (3s): ±1.5 g
    • Maximum speed: 145 products/min

Brochures

SSV Series Combination CW and MD Catalog

SSV Series Combination CW and MD M5 duw-h Catalog
