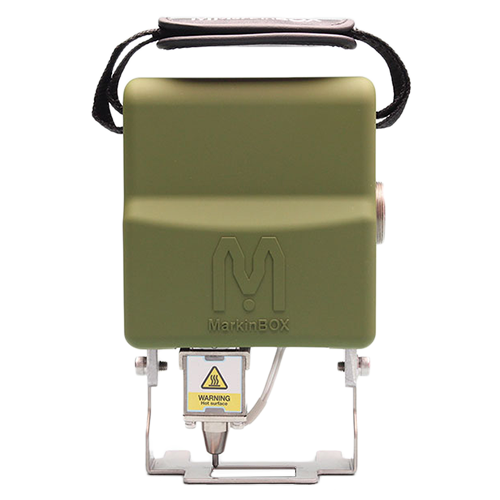

While small in size, the MarkinBOX 3315S (MB3315S) is a big deal in part marking flexibility and functionality. Compact and lightweight, the MB3315S can be positioned at any angle with the marking head directly on any area that needs to be marked. The model is easy to use and its ergonomic design features easy-access controls and a comfortable hand strap for stability.

Marking Area: 33mm (x axis) X 15mm (y axis)

Categories:

Specifications

Marking Area X axis 1.3″ (33mm)
Y axis 0.6″ (15mm)
Marking Area Dimensions 4.6″ (W) x 2.9″ (D) x 7.5″ (H)
(116mm x 73mm x 190mm)
Marking Area Weight 3.3lbs (1.5Kg)
Marking Area Cable 10′ (3m) cable
option : 16′ (5m) cable
Marking Technology Solenoid Drive

Key Features

  • Windows Based Software
    • Sketchbook software is Windows based and runs off of Windows XP, 7 and 8
  • Flexible, Easy to Use

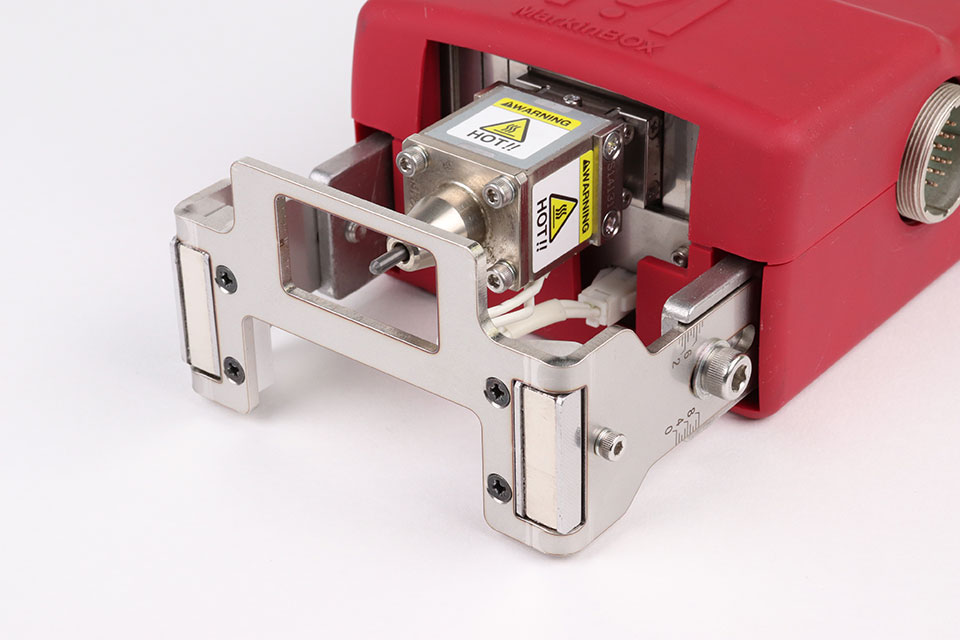

    • Deeper marks are possible with the “Big Solenoid” and 6mm pin option

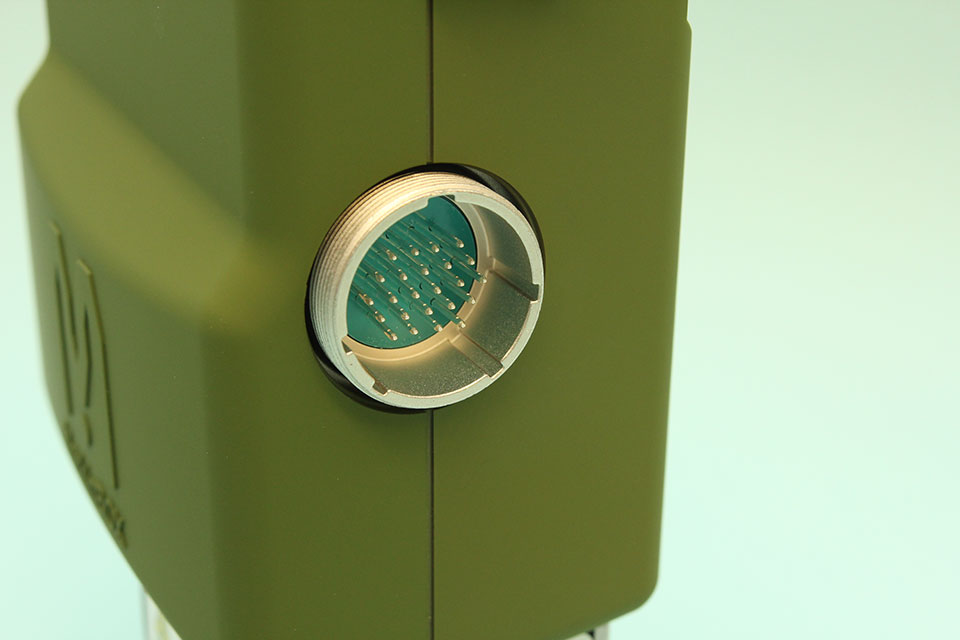

  • Wide Choice of Connectivity
    • 6 possible ways to start marking via USB, Bluetooth (PC or Android), Digital I/O, PLC or Ethernet communications
  • Fully Electric
    • Runs safely and efficiently with maximum uptime and little maintenance

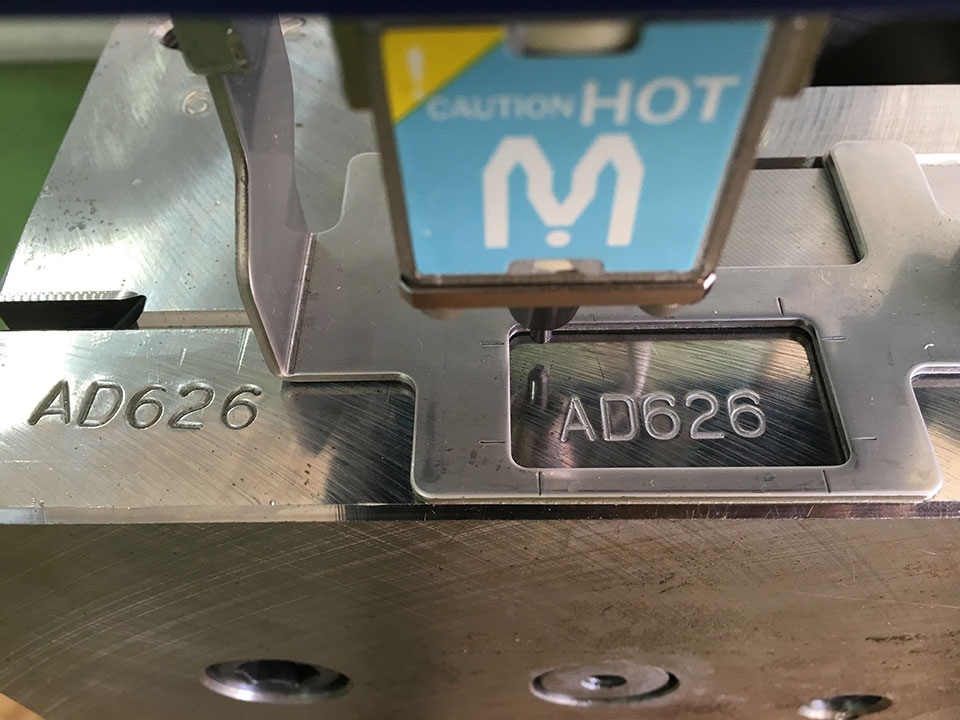

  • High Quality Mark
    • Guaranteed high quality marks as small as 1 mm
  • Flexible Integration
    • Can be hand held, mounted or integrated into production
  • Available in 3 variations
    • Stand type : Standard model
    • Handy type : Portable option
    • In-line type : Can be integrated into other machines
